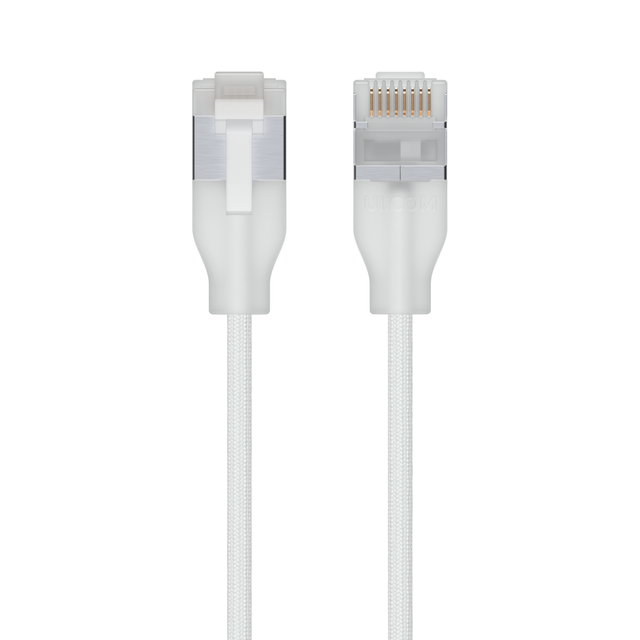

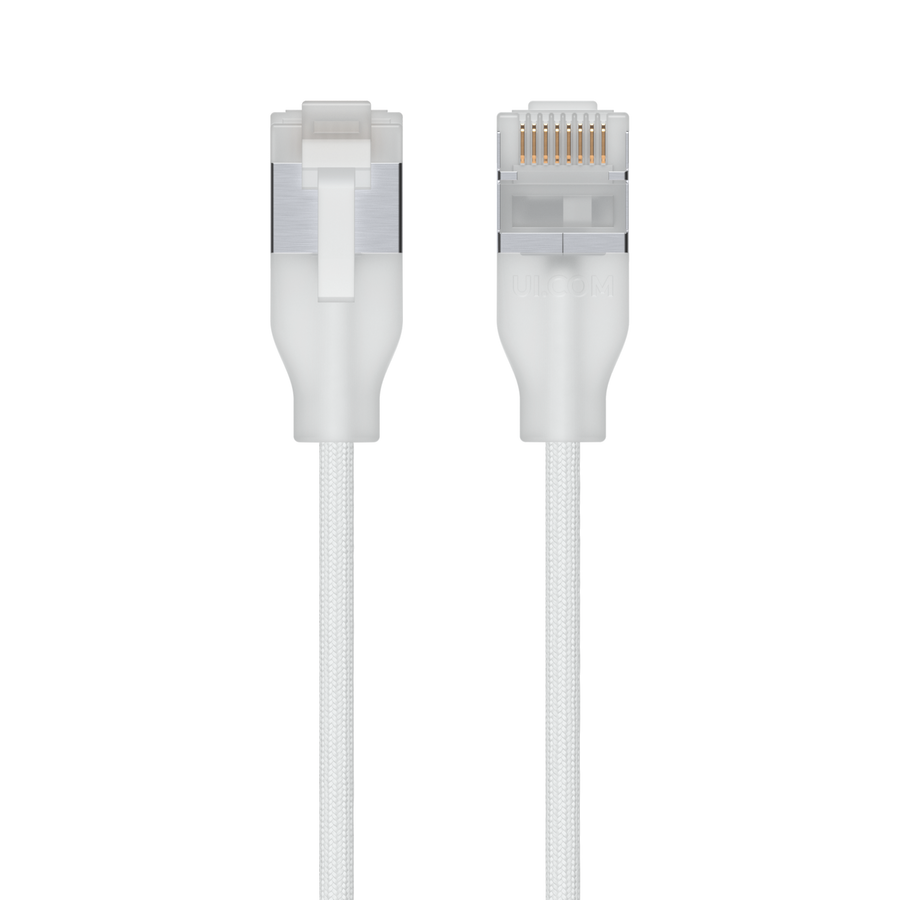

Ubiquiti UniFi UACC-Cable-Patch-EL-C6A-8M-W Premium Patch Cable Ultra-thin braided, designed and optimized for 10 GbE networking, RJ45

Ubiquiti UniFi 8m Premium Patch Cable

Ultra-thin braided shielded RJ45 patch cable, designed and optimized for 10 GbE networking.

Features:

Translucent booted RJ45 for optimal Etherlighting™ brightness

• 3 mm outer diameter for 0.15-8 m lengths
• 3.3 mm outer diameter for 12-15 m lengths

Technical Specifications:

Available Lengths
End-to-End: 0.15, 0.3, 1, 2, 3, 5, 8, 12, 15 m (0.5, 1, 3.3, 6.6, 9.8, 16.4, 26.2, 39.8, 49.2 ft)

Available Colors
White

Pack Options
Single Unit
24-Pack (0.15 m)

Supported Data Rate
10G

Supported PoE Type
Up to PoE+++

Connector
(2) Translucent Booted and Shielded RJ45

Operating Environment
Indoor

Cable Specifications
Jacket Diameter: 0.15–8 m: 3 mm (0.11"), 12–15 m: 3.3 mm (0.13")
Jacket Material: Thermoplastic Elastomer (TPE)
Shielding Type: Thermoplastic Elastomer (TPE)
Conductor Type: Stranded Copper
Conductor Wire Gauge: 1–8 m: 34 AWG, 12–15 m: 32 AWG
Bend Radius: 1–8 m: Min. 24 mm, 12–15 m: Min. 27 mm
Flame Rating: VW-1 (UL1581)

Standards
TIA/EIA-568-B.2

Temperature Ratings
Installation: -20 to 60°C (–4 to 140°F)
Storage: -20 to 75°C (–4 to 167°F)
Operating: -20 to 60°C (–4 to 140°F)
