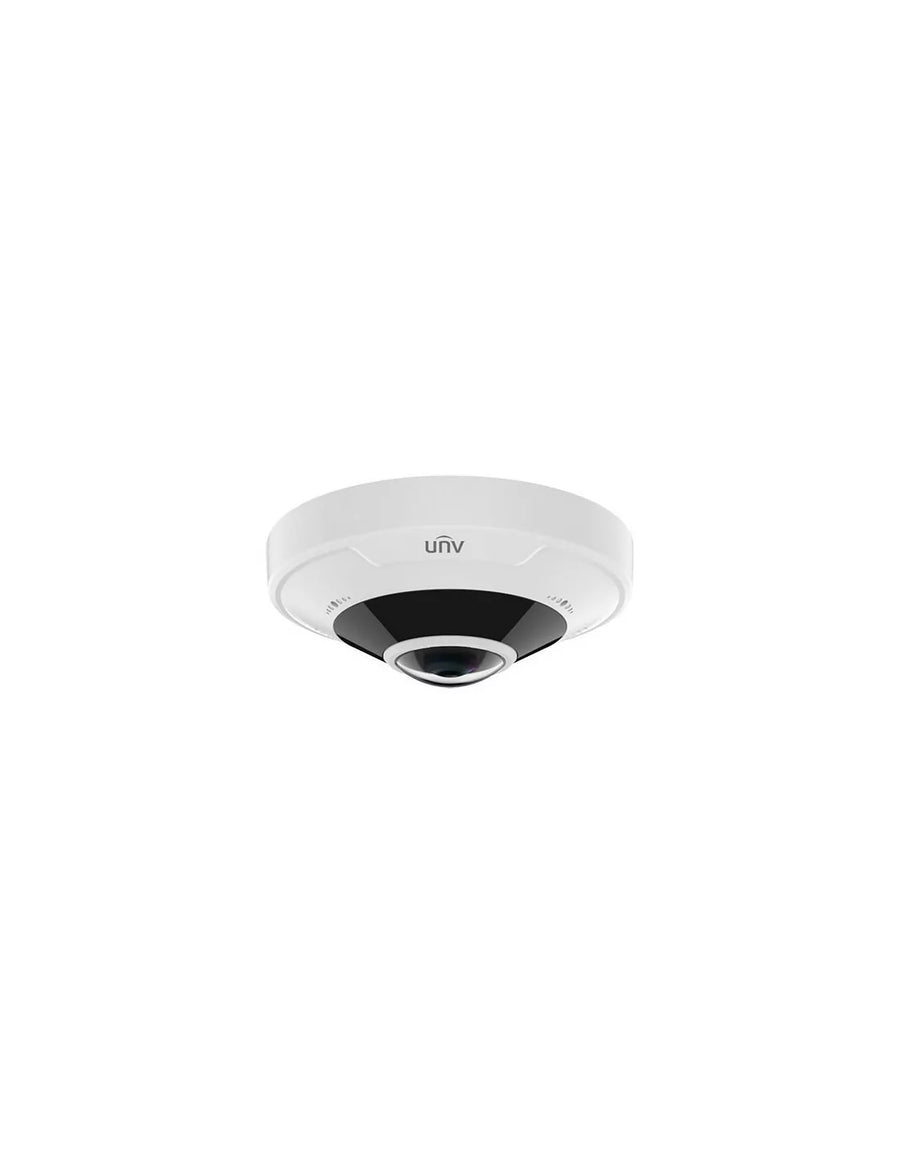

Uniview UNV 12MP Fisheye Dome IP Camera 360° | IPC86CEB-AF18KC-I0

Uniview 12MP 1.8mm UHD Infrared Vandal-Resistant Fisheye Fixed Dome Camera

The Uniview 12MP 1.8mm UHD Infrared Vandal-Resistant Fisheye Fixed Dome Camera () is a cutting-edge surveillance solution designed for ultra-wide area coverage and superior image quality. With its fisheye lens and 12MP resolution, this camera is ideal for environments requiring a panoramic view with minimal blind spots.

Ultra-High Resolution

Provides 12MP UHD resolution (4000 x 3000), delivering exceptional image clarity and detail for high-end surveillance applications.

1.8mm Fisheye Lens

Offers a 360° panoramic view, eliminating the need for multiple cameras to cover wide areas.

Infrared (IR) Night Vision

Equipped with advanced IR LEDs for clear black-and-white video in complete darkness, with a range of up to 10 metres.

Multiple Display Modes

Supports diverse viewing formats such as panoramic, de-warped, and split-screen views, enhancing usability for different scenarios.

Vandal-Resistant and Weatherproof

Rated IK10 for impact resistance and IP67 for protection against dust and water, ensuring reliability in harsh environments.

Advanced Compression

Utilises H.265+ compression, reducing storage and bandwidth demands while maintaining high-quality video.

Smart Features

Includes motion detection and other video analytics for improved event monitoring and proactive security.

ONVIF Compliance

Ensures seamless integration with third-party video management systems (VMS), providing flexibility in deployment.

Features

• High quality image with 12MP,1/1.7’’ CMOS sensor
• Max 4000*3000 resolution
• Ultra265, H.265, H.264, MJPEG
• Ultra wide angle lens, 360° panoramic image
• Embedded infrared light, 360° fill-in light, up to 15m (49ft) IR distance
• Multiple decoding modes, supports software and hardware modes, provides interactive dynamic view
• Heatmap: Working with management platform, the data of moving objects is counted in real time on an intuitive color map
• Built-in microphone & speaker, two-way talk supported
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP67 protection

Specifications

Sensor: 1/1.7", 12.0 megapixel, progressive scan, CMOS Minimum Illumination: Colour: 0.03Lux (F2.0, AGC ON); 0Lux with IR Day / Night: IR-cut filter with auto switch (ICR) Shutter: Auto/Manual, shutter time: 1 ~ 1/100000s WDR: DWDR S/N: >52dB Lens type: 1.8mm@F2.0 Field of View: 360° IR Range: Up to 15m (49ft) IR range wavelength: 850nm IR On/Off Control: Auto/Manual

Video

• Compression: Ultra265, H.265, H.264, MJPEG
• H.264 code profile: Baseline profile, Main Profile, High Profile
• Main Stream: Fisheye View: 12MP(4000*3000)@20fps;3000*3000@20fps; 2560*2560@25fps; Panorama View: 12MP(4000*3000)@20fps;3000*2000@20/25fps; 3000*1500@20/25fp; PTZ View: 1920*1080@20/25fps; Sub Stream: Fisheye View:2000*1500@20fps;2000*2000@25fps; Third Stream: Fisheye View:D1(720*576)@20/25fps;CIF352*288)@20/25fps;
• Video Bit Rate: 128 Kbps~16 Mbps
• U-code: Support
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Video stream: Triple streams


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction: 2D/3D DNR
• Smart IR: Support
• Flip: Normal/Flip Vertical/ Flip Horizontal/180°
• Dewarping: N/A
• HLC: N/A
• BLC: Support
• Defog: Digital Defog

Audio

• Audio Compression: G.711U, G.711A
• Audio Bitrate: 64 Kbps
• Two-way audio: Support
• Suppression: Support
• Sampling Rate: 8KHZ

Network

• Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API,SDK
• User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
• Client: EZStation; EZView; EZLive
• Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

Interface

• Audio I/O: Input: impedance 35kΩ; amplitude 2V [p-p]
• Output: impedance 600Ω; amplitude 2V [p-p]
• Alarm I/O: 2/1; Multiple Alarm linkage editable
• Built-in Mic: Two Mics
• Built-in Speaker: Support
• Serial: 1 channel RS485 interface
• Network: 1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet
• Video Output: 1 BNC, impedance 75Ω; amplitude 1V [p-p]
