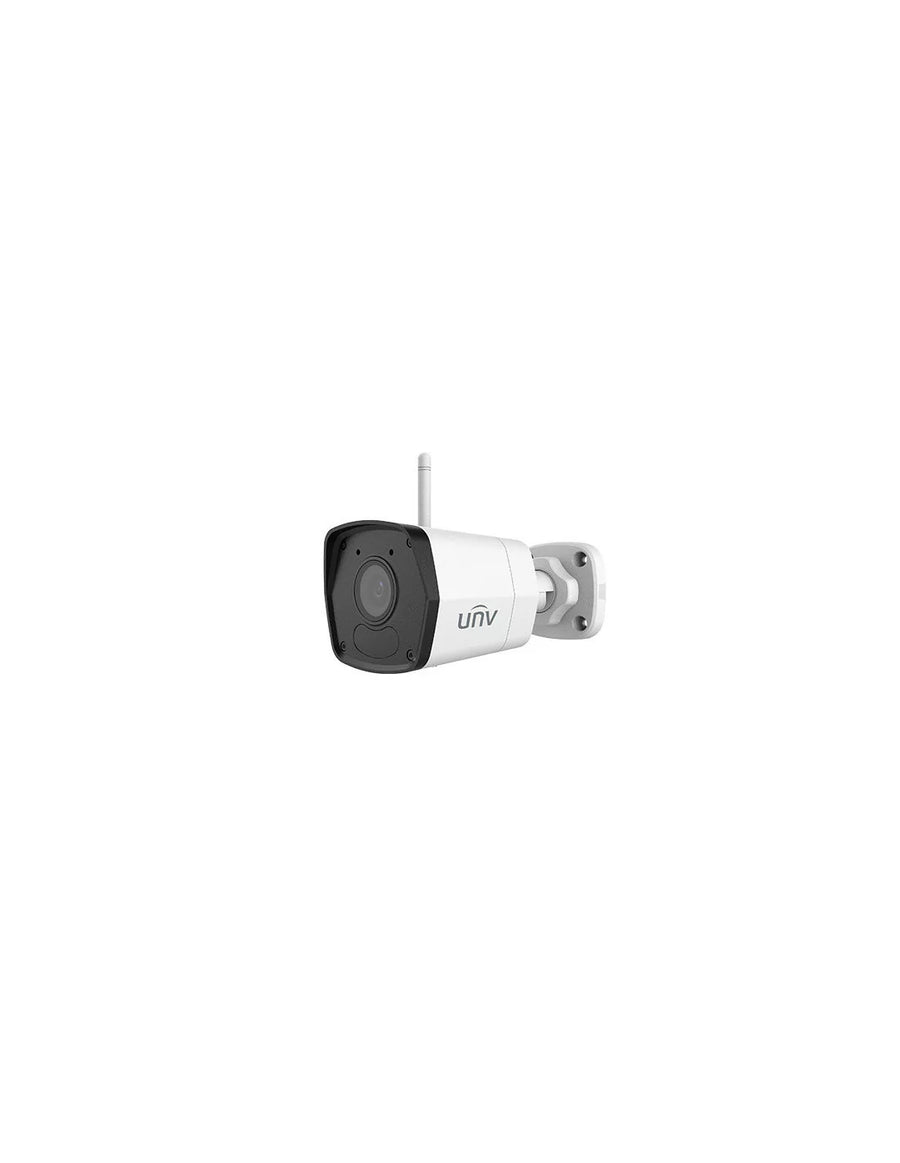

Uniview UNV 2MP Fixed Mini WiFi Bullet IP Camera 2.8mm | IPC2122LB-AF28WK-G

Uniview 2MP 2.8mm Wi-Fi Fixed IR Bullet Network Camera

The Uniview 2MP 2.8mm Wi-Fi Fixed IR Bullet Network Camera () is a reliable wireless surveillance solution designed for both residential and commercial use. It combines high-definition imaging with the convenience of Wi-Fi connectivity, making it versatile and easy to install.

High-Resolution Video

Delivers 2MP Full HD resolution (1920 x 1080) for clear, detailed footage suitable for security monitoring.

2.8mm Fixed Lens

Offers a wide field of view, ideal for monitoring broad areas such as entrances, yards, or driveways.

Wi-Fi Connectivity

Supports wireless network connectivity, simplifying installation by eliminating the need for Ethernet cabling.

Infrared (IR) Night Vision

Equipped with powerful IR LEDs for clear visibility in complete darkness, with a range of up to 30 metres.

Weatherproof Design

Rated IP67, ensuring protection against dust and water, making it suitable for outdoor installations in various weather conditions.

Remote Access

Allows live monitoring and playback via compatible mobile apps or web interfaces, providing convenience and flexibility.

Advanced Compression

Utilises H.265/H.264 compression to reduce bandwidth and storage requirements without compromising video quality.

Motion Detection and Alerts

Features motion detection capabilities, enabling real-time alerts to improve response times for potential security events.

Features

• High quality image with 2MP, 1/2.9"CMOS sensor
• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 512 G Micro SD card
• IP67 protection
• 3-Axis

Specifications

Max Resolution: 2 MP Sensor: 1/2.9" CMOS Min. Illumination: Colour: 0.01 lux (F2.0 AGC ON); 0 lux with IR on Day/Night: IR-cut filter with auto switch (ICR) Shutter: Auto/Manual, 1 ~ 1/100000s Adjustment Angle: Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° S/N: >52dB WDR: DWDR Focal Length: 2.8 mm Iris Type: Fixed Iris: F2.0 Field of View (H): 101.1° Field of View (V): 55.0° Field of View (D): 111.0° DORI Distance (Lens): 2.8mm DORI Distance (Detect): 45.0m DORI Distance (Observe): 18.0m DORI Distance (Recognize): 9.0m DORI Distance (Identify): 4.5m Supplemental Light: IR Illumination Distance (IR): 30 m Wavelength: 850 nm IR On/Off Control: Auto/Manual Edge Storage: Micro SD, up to 512 GB Network Storage: ANR, NAS (NFS)

Video

Video Compression: Ultra 265, H.265, H.264, MJPEG H.264 Code Profile: Baseline profile, Main profile, High profile Frame Rate: Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps Video Bit Rate: 128 Kbps ~ 6144 Kbps U-code: Support OSD: Up to 4 OSDs Privacy Mask: Support (Only NVR) ROI: Support Video Stream: Dual Streams


White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 Digital Noise Reduction: 2D/3D DNR Smart IR: Support Flip: Normal, Flip Vertical, Flip Horizontal, 180° Dewarping: N/A HLC: Support BLC: Support Defog: Digital Defog

Audio

Audio Compression: G.711U, G.711A Audio Bitrate: 64 Kbps Two-way Audio: N/A Suppression: Support Sampling Rate: 8 KHz

Network

Protocols: IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK User/Host: Up to 32 users, 2 user levels: administrator and common user Client: UNV-Link, UNV-Link Pro, EZStation Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

Wi-Fi

Wireless Standards: IEEE802.11b/g/n Frequency Range: 2.4 GHz ~ 2.4835 GHz Channel Bandwidth: 20 MHz Support Modulation Mode: 802.11b: CCK, QPSK, BPSK; 802.11g/n: OFDM/HT Wi-Fi Security: 64/128-bit WEP, WPA-PSK/WPA2-PSK Transmit Power: 802.11b: 17±1.5dBm @11 Mbps802.11g: 14±1.5dBm @ 54 Mbps802.11n: 12.5±1.5dBm @150 Mbps Receive Sensitivity: 802.11b: -90dBm @11 Mbps (Typical)802.11g: -75dBm @54 Mbps (Typical)802.11n: -74dBm @150 Mbps (Typical) Transmission Rate: 802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 150 Mbps
