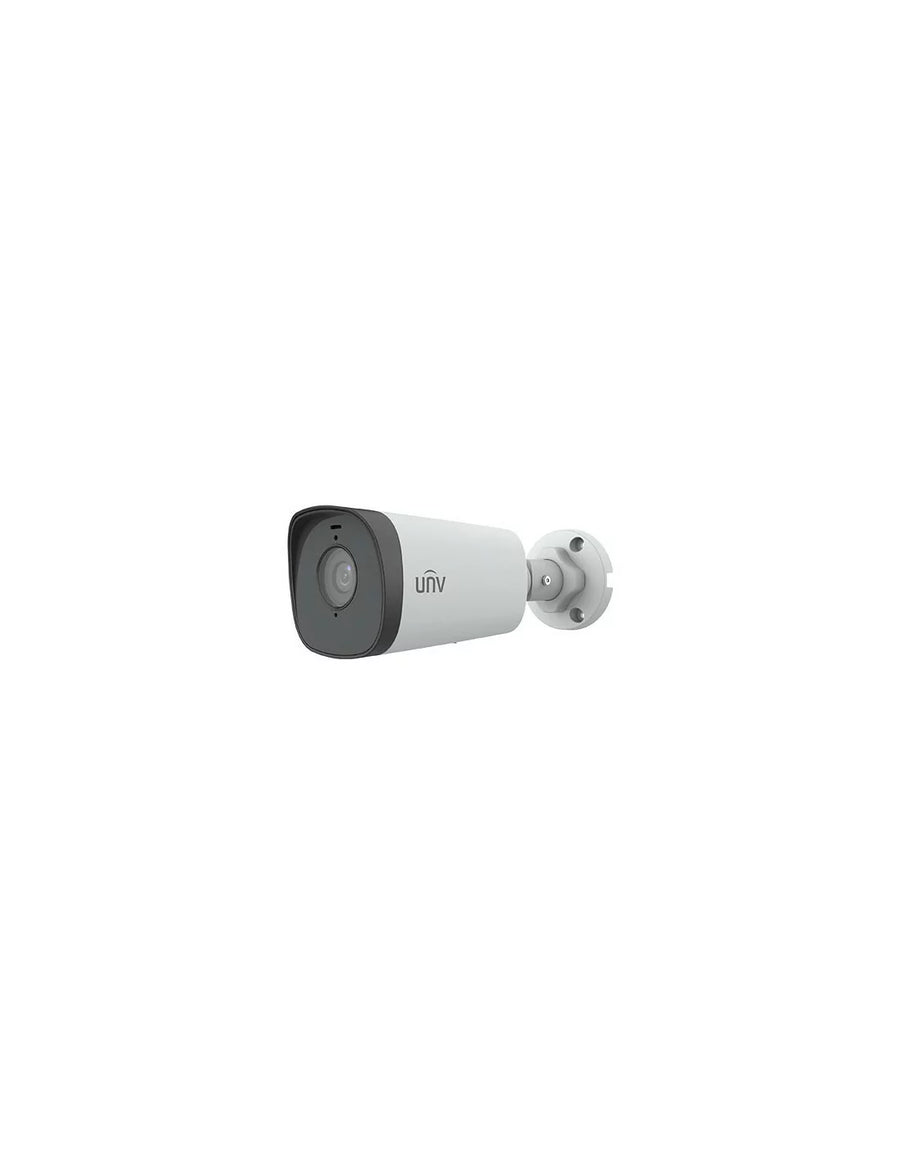

Uniview UNV 2MP LightHunter Bullet IP Camera | IPC2312SB-ADF40KM-I0

Uniview 5MP LightHunter Fixed IR Bullet Network Camera

Features:

• High quality image with 5 MP, 1/2.7" CMOS sensor
• 2880 × 1620@30 fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, supports cross line and intrusion based on human body and vehicle detection
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Supports 9:16 corridor mode
• Up to 120 dB optical WDR (wide dynamic range)
• Supports smart IR, up to 80 m (262.5 ft) IR range
• DC 12 V, PoE (IEEE 802.3af) power supply
• Alarm I/O: 1/1, audio I/O: 1/1
• Built-in mic
• IP67, IK10

Technical Specifications:

Camera
Sensor
1/2.7" CMOS

Minimum Illumination
Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with IR

Day/Night
IR-cut filter with auto switch (ICR)

Shutter
Auto/Manual, 1 to 1/100000 s

Wide Dynamic Range (WDR)
120 dB

Signal-to-Noise Ratio

56 dB

Lens
Focal Length
4.0 mm

Iris
F1.6, fixed iris

Field of View
Horizontal: 91.5°
Vertical: 46.7°
Diagonal: 112.5°

DORI Distance (4 mm lens)
Detect: 90.0 m
Observe: 36.0 m
Recognize: 18.0 m
Identify: 9.0 m

Illuminator
IR Illumination Distance
80 m

Wavelength
850 nm

IR Control
Auto / Manual

Video
Compression Standards
Ultra 265, H.265, H.264, MJPEG

Frame Rate
Main Stream: Up to 30 fps (5 MP resolution)
Sub Stream: Up to 30 fps (720P resolution)

Bit Rate
128 Kbps – 16 Mbps

Streams
Dual streams

OSD
Up to 4 OSDs

Image Processing
Digital defog
Auto / Outdoor / Fine Tune / Sodium Lamp / Locked white balance
2D/3D digital noise reduction
Smart IR, BLC, HLC supported
Flip modes: multiple orientations supported

Intelligent Functions
Smart intrusion prevention with human and vehicle classification
Cross-line and intrusion detection with false alarm filtering

Events
Motion detection (including ultra motion detection)
Tampering and audio detection
Watermarking, authentication, IP filtering, and alarm I/O support

Audio
G.711U / G.711A compression
Bitrate: 128 Kbps
Two-way audio supported
Sampling rate: 16 kHz

Storage
MicroSD support up to 512 GB
ANR and NAS storage supported

Network
IPv4/IPv6, TCP, UDP, DHCP, RTSP, HTTP, HTTPS, SNMP, TLS, SMTP, FTP, and others
ONVIF Profile S/G/T/M, SDK and API supported
Up to 32 users with 3 access levels

Interface
Audio I/O: 1 input / 1 output
Alarm I/O: 1 / 1
Built-in microphone supported
Ethernet: RJ45 10/100 Mbps

Certification
CE, FCC, UL safety standards
IP67 weather protection
IK10 vandal resistance

General
Power supply: DC 12 V or PoE (IEEE 802.3af)
Maximum power consumption: 8 W

Dimensions: 245 × 87 × 86 mm
Weight: 0.82 kg

Operating temperature: −30°C to 60°C
Storage temperature: −40°C to 70°C
Humidity tolerance: 5%–95% RH

Supports 22 web client languages.
