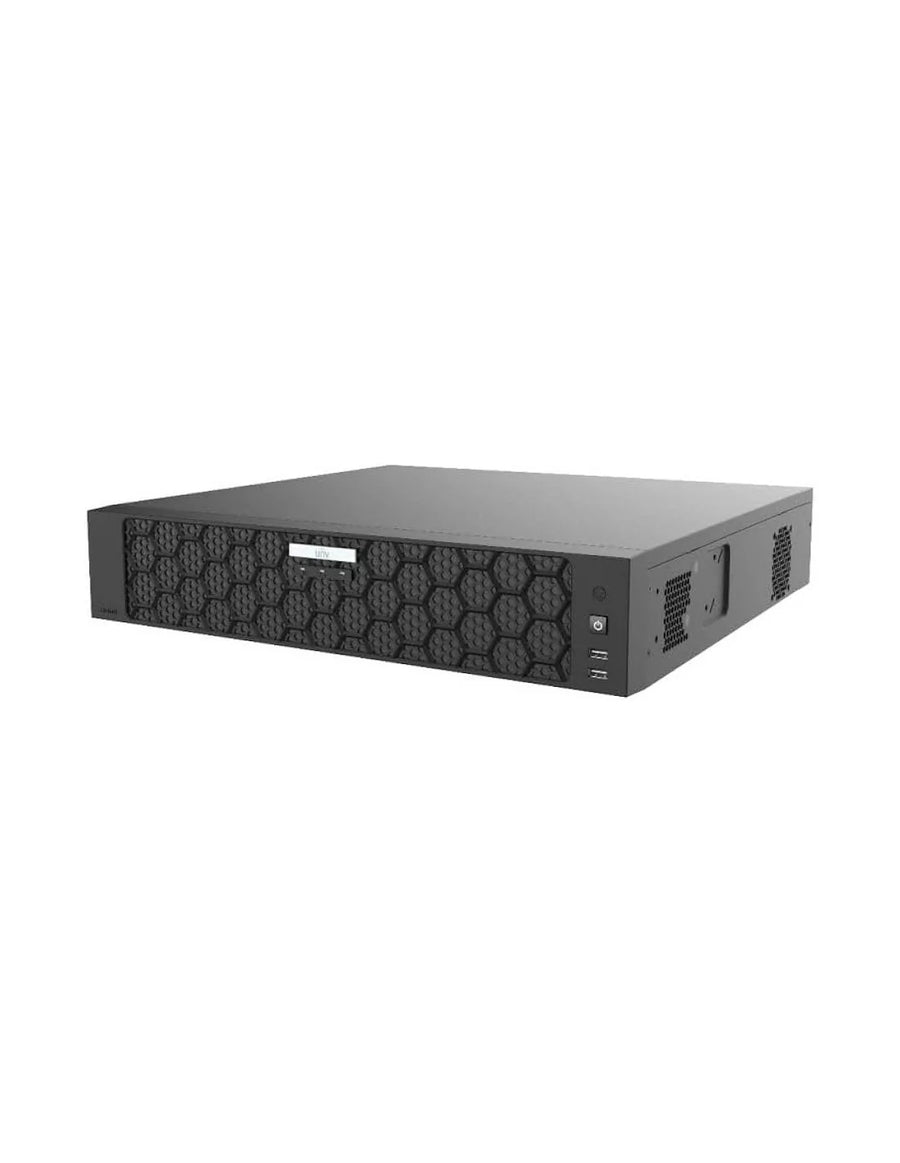

Uniview UNV PRIME AI Series 64-Channel NVR with 8 SATA Interfaces | NVR508-64E-IQ

Uniview 64-channel Ultra 265 NVR

The Uniview 64-Channel NVR is a high-performance network video recorder designed to support large-scale surveillance systems. With robust hardware, intelligent analytics, and advanced management features, it is an ideal choice for professional-grade security installations.

64-Channel Support

Capable of managing up to 64 IP cameras simultaneously, providing extensive coverage for large security networks.

High Decoding Capability

Supports up to 16-channel 1080P or 4-channel 4K decoding, enabling smooth playback and live viewing of high-resolution video.

Storage Capacity

Features 8 SATA interfaces for large storage capacity, allowing for extensive video retention periods.

AI-Powered Features

Integrated with AI-driven analytics, including facial recognition, perimeter protection, and smart search capabilities for enhanced monitoring efficiency.

4K Output Support

Equipped with HDMI and VGA outputs, supporting 4K resolution for crystal-clear video display on connected monitors.

Advanced Compression

Utilises H.265/H.265+ compression, significantly reducing bandwidth and storage requirements without compromising video quality.

Smart Management Features

Includes smart search, event notifications, and remote access via web or mobile apps for user-friendly operation.

ONVIF Compliance

Ensures compatibility with third-party cameras and systems, offering flexibility in deployment.

Features

• Support Ultra 265/H.265/H.264 video formats
• 32/64‑channel input
• Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T) and RTSP protocols
• Support 2 HDMI and 2 VGA. VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output. VGA1/HDMI1 and VGA2/HDMI2 independent output
• Up to 32 Megapixels resolution recording
• Support N+1 Hot spare
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade

Specifications

Decoding Format: Ultra 265,H.265,H.264 Remote Users: 128 Protocols: TCP/IP;P2P;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;NFS;RTSP;802.1x;IPV6 Browser(Plugin): Windows:IE(IE10/11),Firefox (version 52.0 and above),Chrome(version 45 and above),Edge(version 79 and above) IP Video Input: NVR508‑64E‑IQ: 64‑channel RCA Audio Input: 1‑channel HDMI Output: HDMI:4K(3840x2160)/60Hz, 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA Output: VGA:1920x1080p/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz RCA Audio Output: 2‑channel Live view Display: NVR508‑64E‑IQ: 1/4/6/8/9/16/25/36/64 Corridor Mode Screen: 3/4/5/7/9/10/12/16/32 Two-way Audio: 1‑channel,RCA(Using the audio input and output) FTP/Schedule/Event Snapshot: 16‑channel snapshot,up to 4K resolution Recording Resolution: 32MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF Compression: G.711A,G.711U

Decoding Capability

• Smart Off: 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30
• Smart On: 1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x 1080P@30, 32 x 720P@30 NVR508‑64E‑IQ:Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 64 x 720P@30
• Smart On: 1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x 1080P@30, 48 x 720P@30

Incoming Bandwidth

• Smart Off: 384Mbps
• Smart On: 200Mbps

Outgoing Bandwidth

• Smart Off: 384Mbps
• Smart On: 200Mbps

Smart

• VCA Detection by IPC: Face Detection;Vehicle Detection;SIP(Intrusion Detection,Cross Line Detection,Enter Area,Leave Area);Ultra Motion Detection(UMD);Temperature Detection(Fire Detection,Smoking Detection,Temperature Measurement,Smoke and Fire Detection);People Counting(People Flow Counting,Crowd Density Monitoring);Video Metadata;Traffic Monitoring
• Smart by NVR: Face detection;Smart Intrusion Prevention (SIP);Ultra Motion Detection(UMD)
• VCA Search: Motor Vehicle Search;Non‑Motor Vehicle Search;Human Body Search;General Search;People Counting Report;Heat Map
• Smart by IPC: All channels (up to 16 images/s in total)Face Detection,Vehicle Detection,Temperature Detection,SIP,UMD,Video Metadata,Traffic Monitoring
• Face Picture Library: Up to 128 face picture libraries,with up to 40,000 face pictures in total
• Vehicle Picture Library: Up to 5 vehicle picture libraries,with up to 25,000 vehicle pictures in total
• SIP by NVR: 8‑channel
• UMD by NVR: 16‑channel
• Capacity of Snapshot Records: 3 millions records for face snapshot;2 millions records for vehicle snapshot;2 millions records for SIP;2 millions records for video Metadata

HardDisk

• SATA: 8 SATA Interfaces
• Capacity: Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature)
• Disk Group: Support
• Redundant Storage: Support
• Disk Array Type: RAID 0,1,5,6,10

Interface

• Network Interface: 2 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface
• USB: Front panel: 2 x USB2.0;Rear panel: 2 x USB3.0
• RS485: 1
• RS232: 1
• Alarm In: 16‑channel
• Alarm Out: 10‑channel
• SATA: 1
• PowerOutput: 12V
• PowerSupply: AC 100~240V
