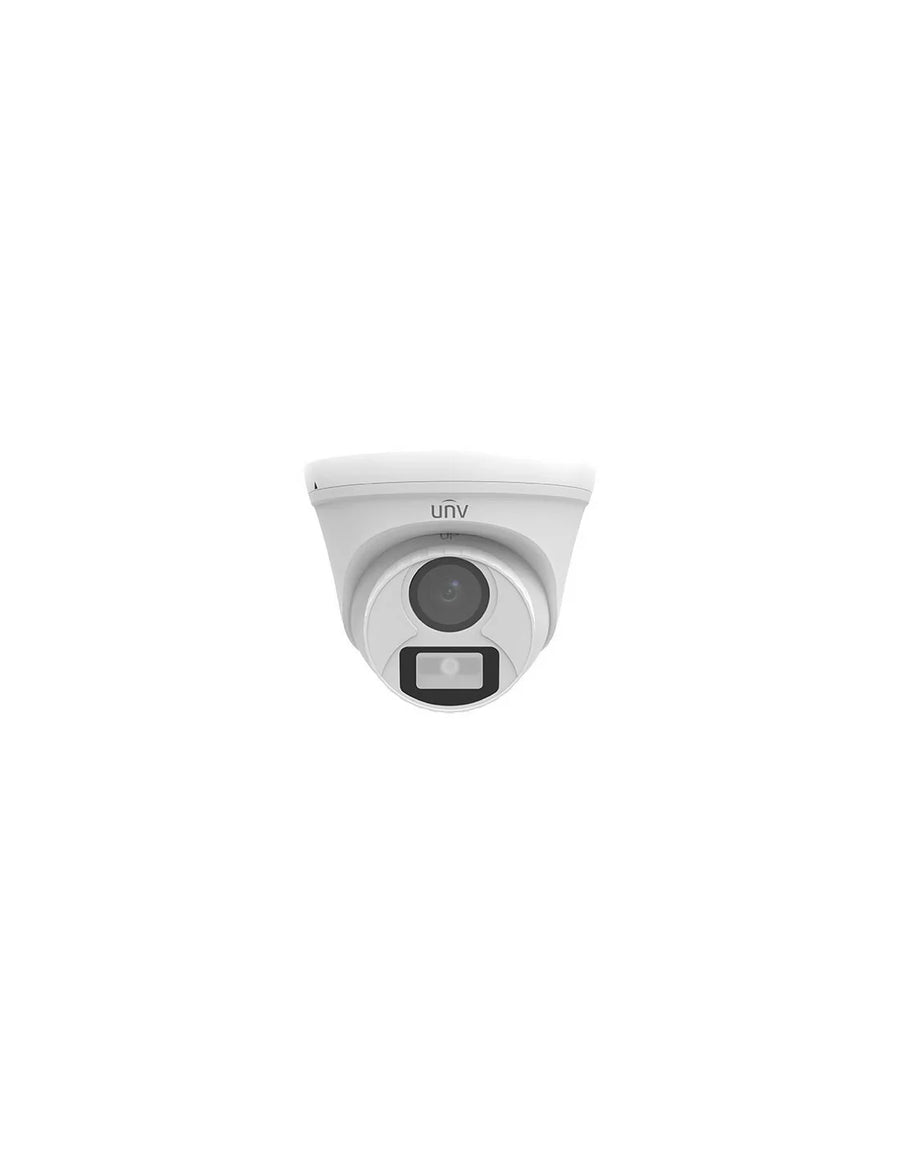

UNV - 2MP ColourHunter HD Fixed Turret Analog Camera

Uniview 2MP ColorHunter Fixed Turret Analog Camera

UN-AC-T112-F28 is a 2MP HD Fixed IR Turret Analogue Camera with a high-performance 1/3-inch CMOS sensor. It supports TVI/AHD/CVI/CVBS, which effectively enhances product adaptability and the diversity of networking solutions. With SYV-75-3 or other coaxial cable types, the camera can achieve low-cost, long-distance, anti-interference, and low-delay mega-pixel HD video transmission. The camera supports an IR cut filter and provides colour images in the daytime and black/white images at night.

Features:

• 2MP high quality image
• TVI/AHD/CVI/CVBS
• Supports white light illumination, 24/7 full-color imaging
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• 3D noise reduction technology delivers clean and sharp images
• 3-Axis

Technical Specifications:

Camera

Max. Resolution: 2 MP

Sensor Size: 1/3.0" CMOS

Minimum Illumination: 0.01 Lux (F1.6, AGC ON); 0 Lux (white light on)

Lens

Focus: 2.8 mm / 4.0 mm

Lens Mount: M12

Angle of View (H): 100.9° (2.8 mm), 82.5° (4.0 mm)

Angle of View (V): 56.5° (2.8 mm), 42.1° (4.0 mm)

Angle of View (D): 121.8° (2.8 mm), 98.6° (4.0 mm)

Illuminator

Type: One white-light illuminator

Illumination Distance: 20 m

Lifetime: ≥ 60,000 hours

Video

Resolution:

1080P: 1920 × 1080

720P: 1280 × 720

Frame Rate:

• TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps
• AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
• CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
• CVBS: PAL, NTSC

Shutter Time: PAL: 1/25s–1/50000s, NTSC: 1/30s–1/50000s


Exposure Mode: Global (default), BLC, HLC, DWDR

Day/Night: 24/7 color images

DNR: 2D/3D

White Balance: Auto (default), Manual

WDR: DWDR

Flip: 180° horizontal / 180° vertical

Interface

Power Interface: Ø5.5 mm

Video Output: BNC, TVI/AHD/CVI/CVBS

Operating Environment

Temperature: -30°C to 60°C (-22°F to 140°F)

Humidity: ≤ 95% RH (non-condensing)

Surge Protection: 4 KV (power), 4 KV (video output)

General

Power Supply: DC 12 V ±25%

Power Consumption: Max. 2.0 W

Mount Options: Wall, Pole, Corner, Pendant

Dimensions (Ø×H): Ø118 × 96 mm

Material: Graphene + Plastic

Weight: 205 g (0.452 lb)

OSD Menu Languages: 11 (English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish)

Certification

EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR Part 15 B)

Safety: CE-LVD (EN 62368-1)

Environment: CE-RoHS (2011/65/EU; (EU)2015/863), WEEE (2012/19/EU)

Protection: IP67 (IEC 60529)
