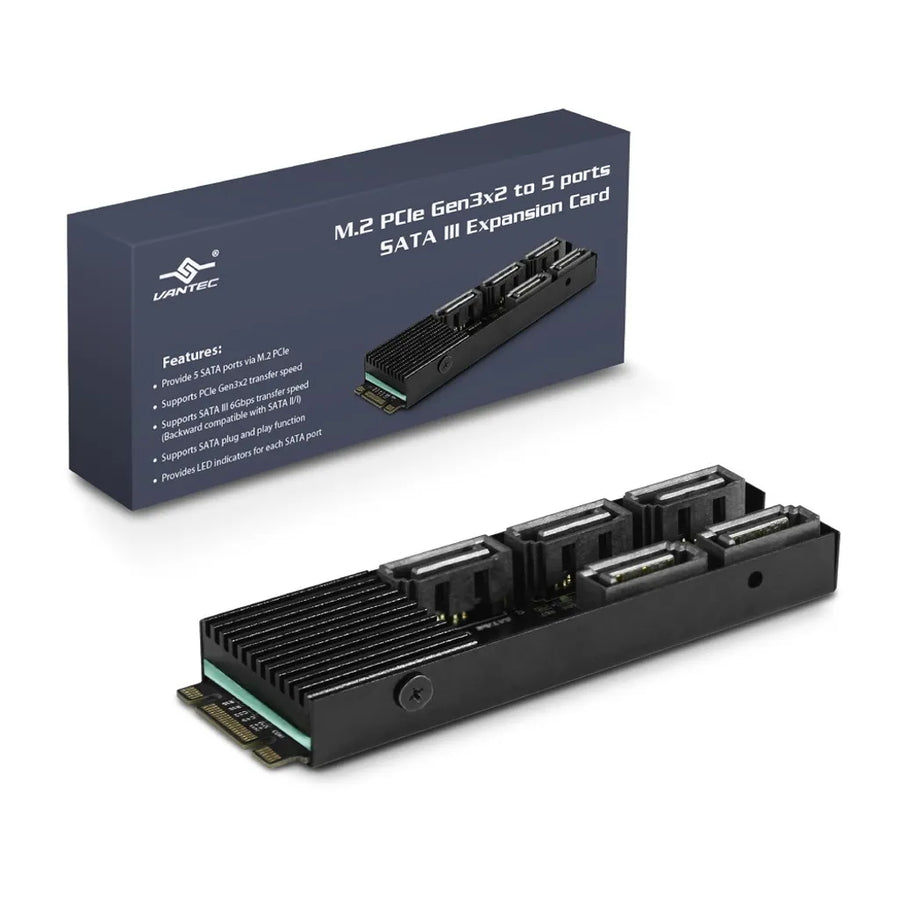

Vantec M.2 PCIe Gen3x2 to 5-Port SATA III Expansion Card B+M Key Plug and Play

Vantec M.2 PCIe Gen3x2 B+M Key to 5-port SATA Expansion Card

This M.2 PCIe Gen3x2 B+M Key to 5 ports SATA III Expansion Card is designed to use the M.2 NVMe slot on the motherboard to connect 5 SATA devices. It uses PCIe v3.0 with 2 lanes (B+M Key) to link to the 5 SATA devices. This will allow for even greater number of SATA III devices to be connected. It is Plug and Play, no additional software or drivers are required when using Windows 10/11. It is design to support SATA SSD or HDD for fast data transfer and clear LEDs indicators for each SATA port for disk activity. The Core chipset JMB585 manage the 5 SATA port with port multiplier and multiple commands for simultaneous sending/receiving data both in AHCI and legacy IDE mode. It also support TRIM to SSD and is able perform at a theoretical speed of 6Gbps.

This M.2 PCIe Gen3x2 B+M Key to 5 ports SATA III Expansion Card is designed to use the M.2 NVMe slot on the motherboard to connect 5 SATA devices.

• Provide 5 SATA ports via M.2 PCIe
• Supports PCIe Gen3x2 transfer speed
• Supports SATA III 6Gbps transfer speed (Backward compatible with SATA II/I)
• Supports SATA plug and play function
• Provides LED indicators for each SATA port

Specifications:

Model:

M.2 interface: M.2 NVMe (PCI Express 3.0x2)

Device Connectors: Five SATA III (6Gbps) ports

Power Supply: M.2 interface powered, no external power needed

Dimensions (LxWxH): 80.8 x 25.4 x 10.6 mm

Weight: 23 g

OS Support: Windows 11, 10 (32bit or 64bit); Linux OS with Latest Kernel

Operating Humidity: 10% to 85 % RH (no condensation)

Storage Humidity: 5% to 90% RH (no condensation)
