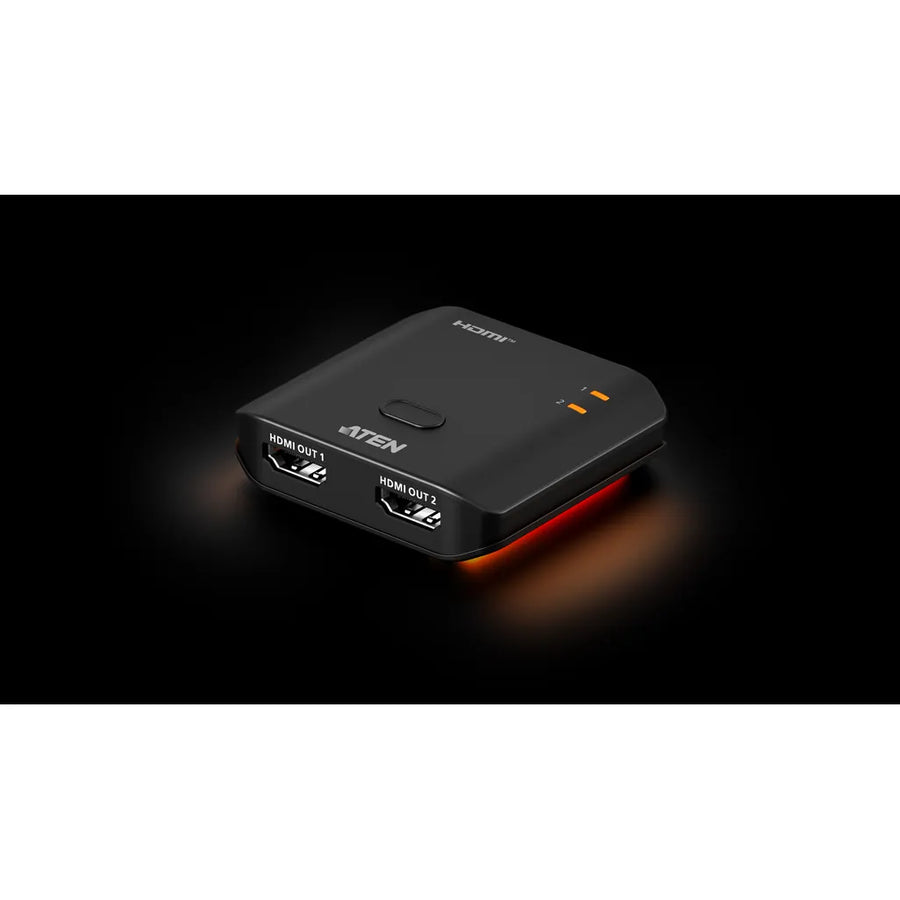

Aten 2-Port 8K HDMI Splitter 8K60 4K120 VRR ALLM HDR10+ Dolby Vision HDCP 2.3 7.1 Audio USB-C Powered

Aten Essentials 2-Port 8K HDMI Splitter

Display a single HDMI source onto two displays with the  Essentials 2-Port 8K HDMI Splitter from ATEN. This compact splitter supports up to 8K60 or up to 4K120 video input and output from sources such as gaming systems, Blu-ray players, laptops, and set-top boxes for output to two HDMI displays.

Features:

• EDID Sync Smart Display Optimization automatically optimizes resolutions and prevents display issues
• Share one HDMI source across two displays, delivering simultaneous 8K60 and 4K120 visuals
• Variable Refresh Rate (VRR) synchronizes frame rate to eliminate screen tearing and stutter for smooth gameplay
• Auto Low Latency Mode (ALLM) automatically switches to game mode, reducing input lag for responsive control
• HDMI 3D/Deep Color, HDR10+, and HDCP 2.3 compatibility guarantees stable performance, broad compatibility, and superior image quality
• Full support for LPCM 7.1, Dolby, and DTS-HD Master Audio delivers theatrical-quality surround sound
• Push-button output control instantly enables or disables HDMI out #2 with a press of the push button for intuitive, hands-on display management
• Slim profile and stylish accent lighting allow integration into any space

Technical Specifications:

Interfaces
Inputs:

• 1 X HDMI Female

Outputs:

• 2 X HDMI Female

Embedded Audio: HDMI

Standards
HDR Support: HDR10+ And Dolby Vision
HDCP Support: Version 2.3
Audio Decoding:

• DTS-HD Master Audio
• Dolby Digital
• LPCM

Transmission
Maximum Transmission Distance: 1.5 M
Video Format: HDMI
Supported Resolutions:

• 7680 X 4320 At 60 Fps
• 4096 X 2160 At 120 Fps

Audio Channels: 7.1-Channel
Impedance: 100 Ohms
Maximum Data Rate: 48 Gb/s

Power
Power Input:

• 1 X USB-C (5 VDC At 1 A)

ESD Protection: No

Environmental Conditions
Operating Temperature: 0°C To 40°C Up To 80% Humidity
Storage Temperature: -20°C To 60°C Up To 80% Humidity

Physical Specifications
Material: Plastic
Dimensions: 61.0 X 56.5 X 15.2 Mm
Weight: 30 G
