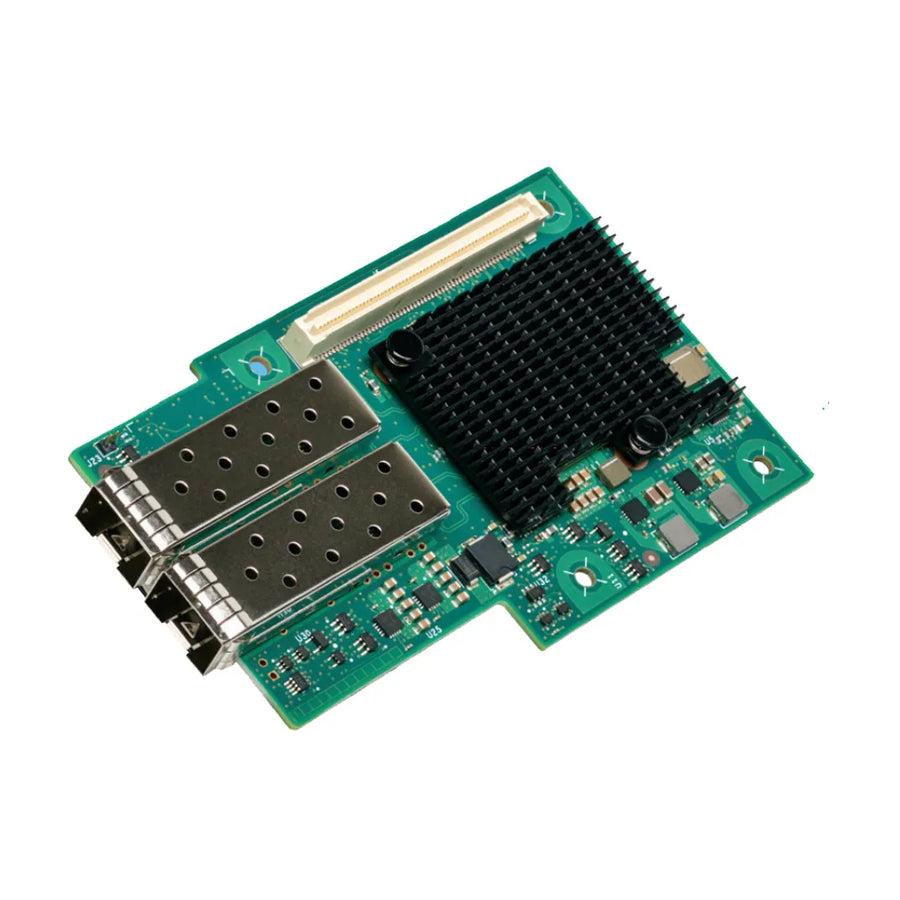

Intel XXV710 25GbE Dual-Port OCP 2.0 Server Network Adapter

XXV710DA2OCP1

Intel XXV710DA2OCP1. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 25000 Mbit/s

Specifications

• Connectivity technology: Wired
• Ethernet LAN (RJ-45) ports: 2
• Host interface: PCI Express
• Interface: Fiber
• Fiber ports quantity: 2
• PCI version: 3.0
• Fiber optic connector: SFP28
• Product type: Network Interface Card
• Data transfer rate: 8
• Cable type: SFP28 Direct Attach twinaxial cabling up to 5m / SFP28 SR Optics also supported (extended temp ONLY)
• Intel Virtual Machine Device Queues (VMDq): Y
• PCI-SIG* SR-IOV Capable: Y
• On-chip QoS and Traffic Management: Y
• Intel Flexible Port Partitioning: Y
• Low halogen options available: N
• Intelligent Offloads: Y
• iWARP/RDMA: N
• Intel Data Direct I/O Technology: Y
• Intel Virtualization Technology for Connectivity (VT-c): Y
• Interface type: PCIe v3.0 (8.0 GT/s)
• Ethernet adapter ARK ID: 97303
• Cabling type: SFP28 Direct Attach twinaxial cabling up to 5m / SFP28 SR Optics also supported (extended temp ONLY)
• Storage Over Ethernet: iSCSI, NFS
• Bracket height: OCP form factor (Mezz 2.0 Type 1 and Type 2 Design Spec)
• Launch date: Q4'17
• Network interface card cable medium: Copper
• Network interface card type: Server
• Product brief URL: https://www.intel.com/content/www/us/en/ethernet-products/network-adapters/ethernet-xxv710-for-ocp-brief.html
• Status: Launched
• Last change: 64826848
• Product family: Intel® 25 Gigabit Server Adapters
• Market segment: Server
• Export Control Classification Number (ECCN): 5A991
• Commodity Classification Automated Tracking System (CCATS): NA
• Product series: 700 Series Network Adapters (up to 40GbE)
• Speed & slot width: 8.0 GT/s, x8 Lane
• Target market: Artificial Intelligence, High Performance Computing
• Processor family: 700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE)
• Harmonized System (HS) code: 85176990
• Network interface card cable medium: Copper, Fiber
• Power consumption (typical): 10.7
• Compatible operating systems: https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
• Ethernet LAN data rates: 1000,10000,25000
• Maximum data transfer rate: 25000
• iSCSI support: Y
• Maximum operating distance: 5
• Internal: Y
• Certification: FCC A, UL, CE, VCCI, BSMI, CTICK, KCC
• Form factor: OCP
• Operating temperature (T-T): 0 - 55
• Storage relative humidity (H-H): 0 - 90
• Storage temperature (T-T): -40 - 70
• Harmonized System (HS) code: 85176990
